In this age of technology, it is important to stay connected to it than just having access to it. That’s why we bring you networking solutions that make establishing connections easy.

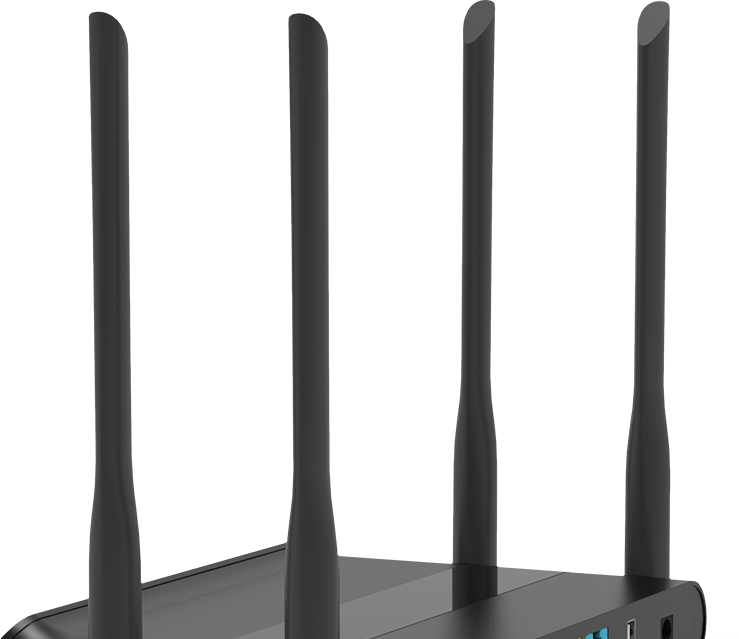

4 x 5dBi high-gain antennas for a far-reaching network. Avoid signal interference to get the fastest internet speeds and coverage.

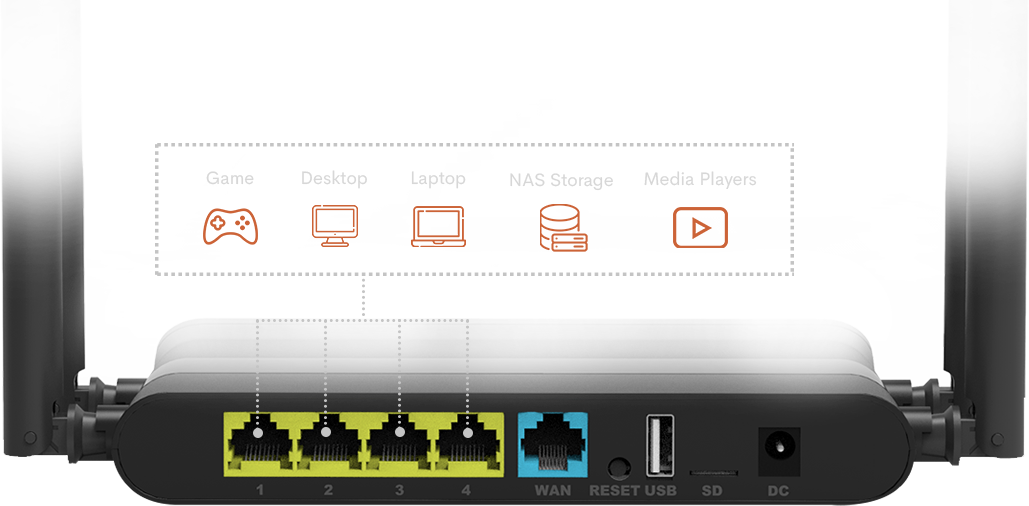

Plug in your game console, computer systems, and other wired peripherals using high-speed 4 x 1 Gigabit Ethernet ports (1- 10/1000Mbps WAN, and 3 10/100Mbps LAN interface).
Support IEEE 802.11ac / 802.11a / 802.11n / 802.11g / 802.11b network protocol. The max transmission rate could be 1200Mbps. Support 802.113 / 802.11u protocol, 5* 10/100/1000Mbps Auto MDI/MDIX, 1 USB 2.0 date interface, 1 Micro TF Card Slot. Many kinds of way to protect your data transmission. Support 11AC,dual band (an option, need install with MINI-PCIE 5G module)

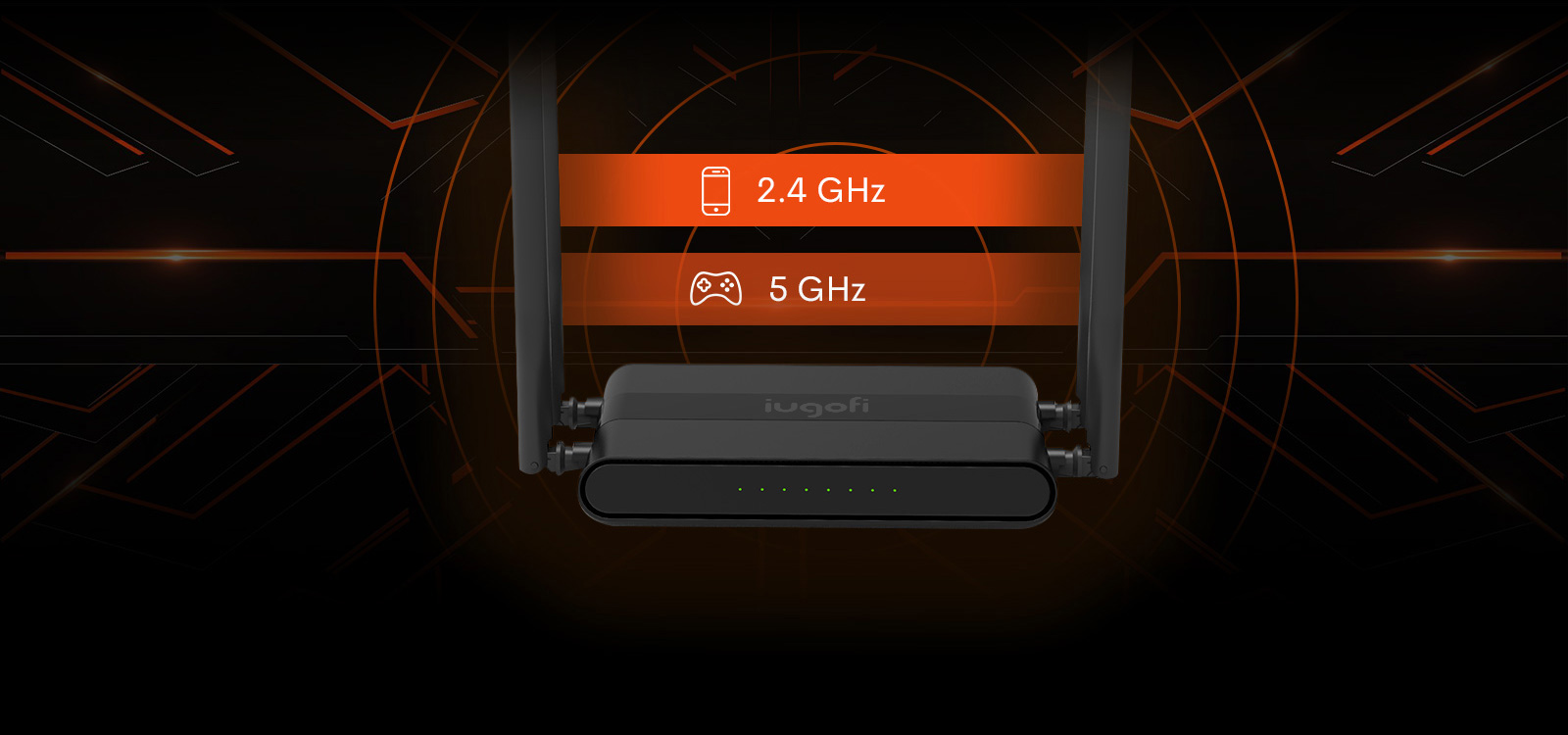

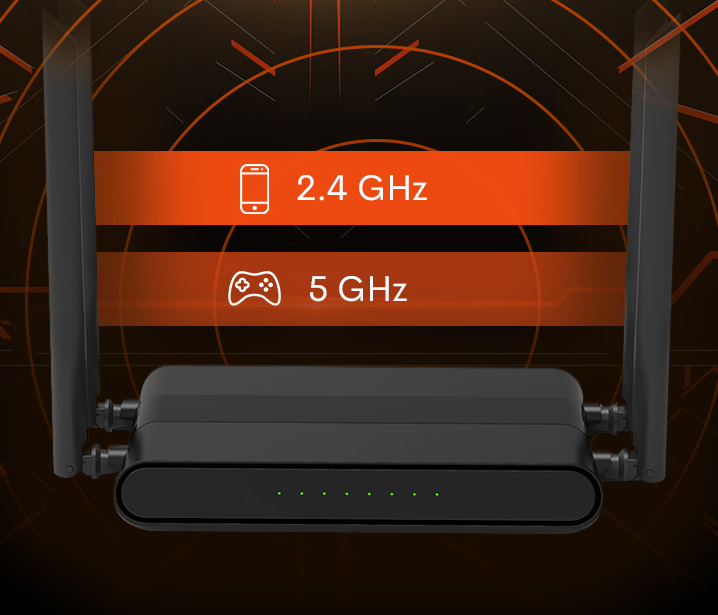

Dual-band adaptability so you can connect multiple devices without worrying about signal interference. From simple tasks like sending emails to bandwidth-intensive tasks like gaming and 4K video streaming, get everything done with ease.
Control what your children or office employees see on the internet by limiting access to websites from the online network management dashboard.
Push and Connect WPS button
USB Connection
Firewall Security
Best-in-class 24*7 tech support
| Main Chipset | MT7621A (880MHz) |
|---|---|
| 2.4G Chip set | MT7603EN |
| 5.8G Chip set | MT7612EN |
| RAM | DDR2 128MB （MAX DDR2 128MB） |
| SPI FLASH | 16MB （MAX 32MB） |
| Wireless Standards | IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE802.11ac |
| Wireless Standards |
|
| RT Power |
|
| Reception Sensitivity |
|
| Work Channel |
|
| Wireless Rate | Max 1200Mbps（depends on the 11AC mode） |
| Work Frequency | 2.4GHz, 5.8GHz |
| Antenna | 4* non-removable 5dBi antenna |
| Interface |
|
| LED | PWR.2G.5G.WAN.LAN1.LAN2.LAN3.LAN4 |
| Button | Reset Button |
| Max Power consumption | < 12W |
| Dimension （L*W*H） | 164*137*35MM |
| WAN Type | PPPoE, Dynamic IP, Static IP AP |
| Work Mode | Router |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Firewall Security |
|
| Work Environments |
|
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Adapter | 12V 1A |
If you have any queries, please leave us a message using the form below and someone from our team will get back to you.
